Ford F150 Raptor Gen2 19-20, 3.0, External Bypass, 0-1.5", Stage 6, Live Valve, Rear Shock, Pair

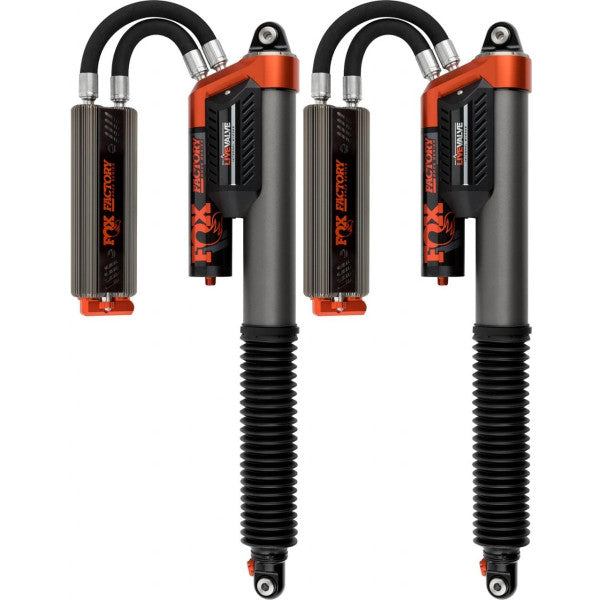

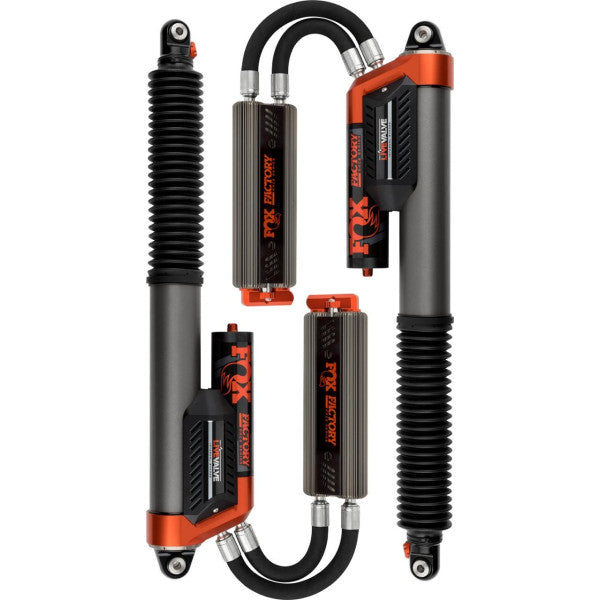

FOX Factory Race Series 3.0 Live Valve Internal Bypass Piggyback Shocks (Pair) – Adjustable for Superior On- and Off-Road Performance

Semi-Active Suspension for Next-Level Handling and Comfort

The FOX Factory Race Series 3.0 Live Valve Internal Bypass Piggyback Shocks are engineered to maximize the performance of your Ford Raptor using Live Valve semi-active technology. By integrating vehicle sensors and accelerometers, these shocks adapt in real-time to steering, braking, and acceleration inputs to ensure optimal handling, comfort, and bottom-out resistance. With Quick Switch Technology (QS3), you can easily toggle between On-Road Comfort, On-Road Performance, or Off-Road Performance modes, giving you full control over your vehicle’s suspension, no matter the terrain.

Key Features of FOX Factory Race Series 3.0 Live Valve Internal Bypass Piggyback Shocks

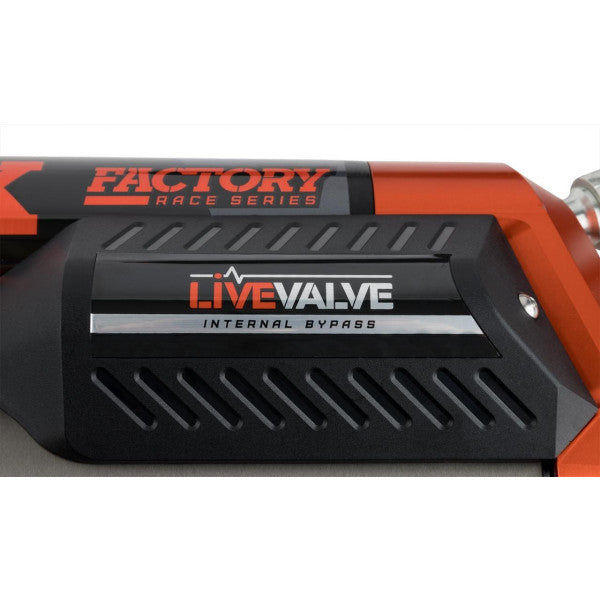

Live Valve Technology for Adaptive Terrain Response
These shocks are equipped with Live Valve semi-active technology, allowing them to instantly adjust damping based on real-time sensor data. This provides precise control over your suspension in response to changes in road or off-road conditions, ensuring maximum comfort, handling, and safety. Whether you're tackling trails or cruising on highways, these shocks adapt automatically to optimize performance.

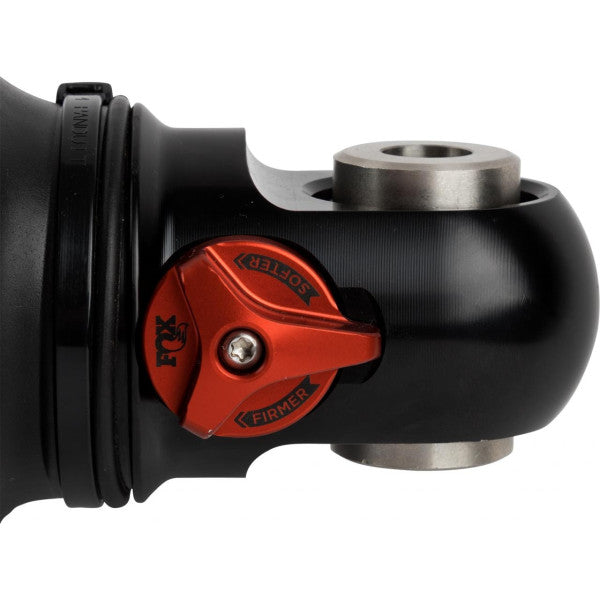

Quick Switch (QS3) Adjusters for Easy Customization
The Quick Switch (QS3) adjusters let you quickly and easily switch between three preset modes: On-Road Comfort, On-Road Performance, and Off-Road Performance. This feature allows you to fine-tune your suspension based on your driving conditions and preferences, giving you a more tailored and controlled driving experience.

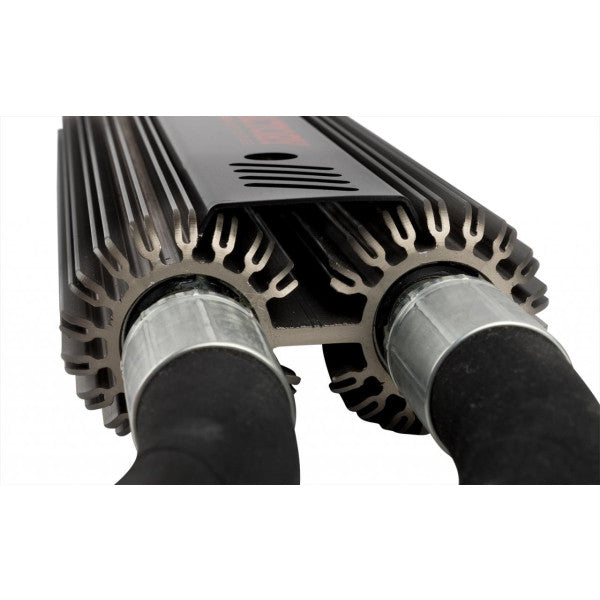

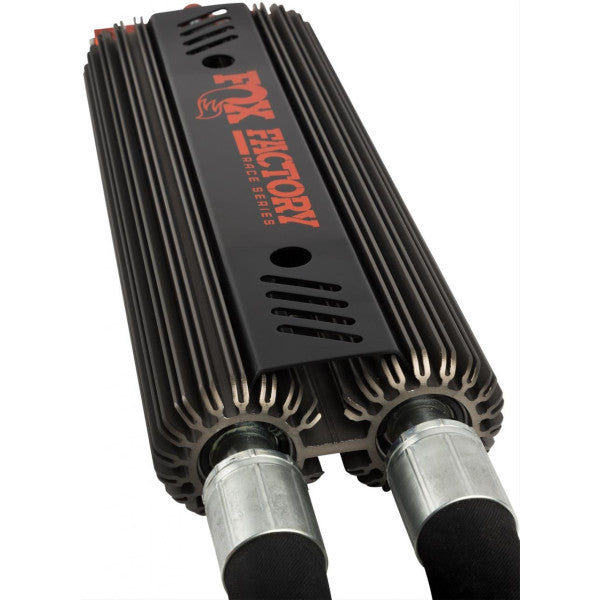

Finned External Reservoir System for Superior Cooling
The shocks come equipped with a finned external reservoir system, which helps dissipate heat quickly during high-speed or extended off-road use. This ensures consistent performance by keeping the shock fluid cooler, preventing shock fade, and maintaining optimal damping forces, even in extreme conditions.

Built for Durability and Race-Ready Performance

3.0" Hard-Anodized Aluminum Body for Lightweight Durability
The shocks feature a 3.0" impact-extruded, CNC-machined 6061-T6 aluminum body, which is hard-anodized to resist corrosion while being significantly lighter than steel. This construction ensures maximum durability and long-lasting performance, even in harsh environments.

7/8" Stainless Steel Shafts for Strength
These shocks use 7/8" hard chrome-plated 17-4 H900 stainless steel shafts, designed for superior strength and impact resistance. The shafts are built to withstand extreme off-road abuse while maintaining smooth, reliable performance.

Patented Internal Bypass Technology for Position-Sensitive Damping
The patented Internal Bypass technology provides position-sensitive damping, meaning the shocks adjust their damping force depending on compression and rebound. This progressive damping offers a smooth ride during regular driving while progressively increasing support to prevent bottoming out and improve control during rough terrain.

Technical Specifications

• Body: 3.0" impact-extruded, CNC-machined 6061-T6 hard-anodized aluminum
• Travel: 12.19"
• Rear Lift Height: 0-1"
• Extended Length: 31.18"
• Compressed Length: 18.99"
• Reservoir: Finned external reservoir system with External Cooling System (ECS2)
• Shaft: 7/8" hard chrome-plated 17-4 H900 stainless steel
• Piston: High-flow, hard-anodized 6061-T6 billet aluminum race piston
• Valving: Application-specific to maximize performance
• Seals: Redundant sealing pack system (main seal, wiper seal, scraper seal) for enhanced durability
• Bearings: PTFE-lined, heat-treated alloy steel spherical bearings for smooth, quiet movement
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Fitment Notes: External Cooling System (ECS2) mounting hardware included
