Ford F150 Raptor Gen2 17-18, 3.0, External Bypass, 0-1.5", Stage 5, Rear Shock, Pair

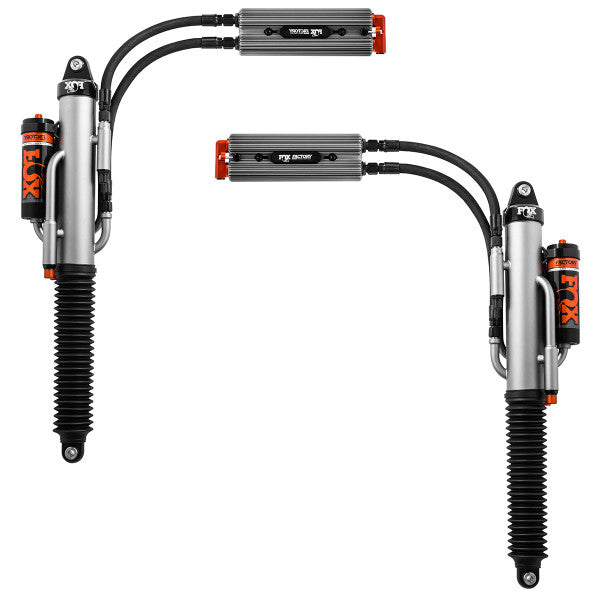

FOX Factory Race Series 3.0 External Bypass QAB Shock (Pair) – For Ultimate Off-Road Performance

Inspired by Off-Road Racing for Maximum Control and Comfort

The FOX Factory Race Series 3.0 External Bypass QAB Shocks bring race-proven technology to your Gen 2 Ford Raptor. Designed with position-sensitive External Bypass damping, Quick Adjust Bypass (QAB) knobs, and an External Cooling System (ECS2), this rear upgrade kit delivers unmatched off-road performance without sacrificing on-road comfort. Built with the same advanced components found on top off-road race machines, this kit is perfect for those looking to push their vehicle's limits on tough terrains.

Key Features of FOX Factory Race Series 3.0 External Bypass QAB Shocks

External Bypass for Precision Damping Control
These shocks utilize External Bypass technology, allowing for position-sensitive damping that delivers precise control over compression and rebound. This advanced system ensures a smooth ride during regular driving, while progressively increasing damping to handle extreme off-road conditions. With multiple zones of damping control, these shocks provide better handling, stability, and comfort over rough terrain.

Quick Adjust Bypass (QAB) for Easy Tuning
The Quick Adjust Bypass (QAB) knobs allow you to quickly fine-tune your suspension settings without tools. You can easily adjust the compression and rebound settings to optimize your suspension for different terrains and driving styles. Whether you’re tackling dunes, rocky trails, or everyday roads, the QAB knobs give you full control over your ride.

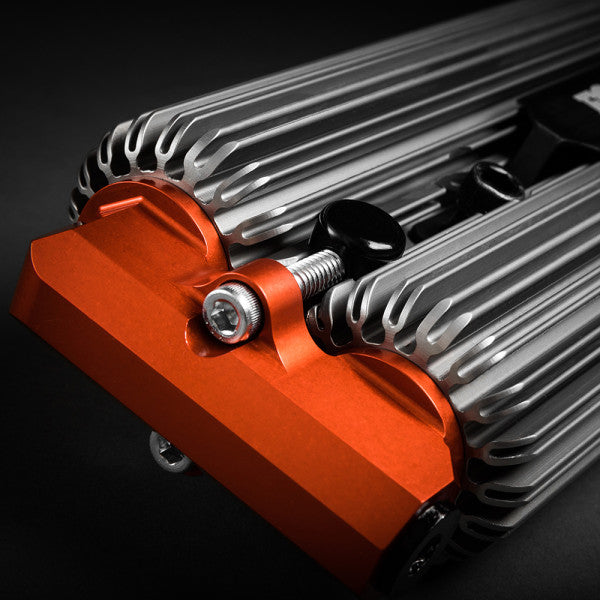

External Cooling System (ECS2) for Improved Performance
The shocks feature an innovative External Cooling System (ECS2), which helps keep the shock temperatures low during intense off-road use. The system includes a finned remote reservoir with a Recirculating Reservoir Bridge, ensuring cooler operation and consistent performance. This design prevents shock fade, ensuring your suspension remains responsive and reliable throughout long off-road drives.

Built for Durability and Off-Road Abuse

Durable 3.0" Steel Body with Proprietary Coating
The 3.0" steel body is treated with a new proprietary coating for improved durability, protecting the shocks against corrosion, wear, and harsh environmental conditions. This ensures the shocks remain durable and effective over extended periods of use in extreme off-road conditions.

7/8" Stainless Steel Shafts for Added Strength
The 7/8" 17-4 H900 stainless steel shafts are hard chrome-plated to resist wear and impact, ensuring smooth operation even under the most demanding conditions. These heavy-duty shafts ensure your shocks perform reliably in extreme off-road environments, offering superior strength and durability.

High-Flow Race Piston for Maximum Performance
The hard-anodized 6061-T6 billet aluminum race piston is designed for maximum oil flow, ensuring that your suspension responds quickly and smoothly. This race-proven design delivers enhanced performance and handling, giving you more control over your vehicle in challenging terrains.

Technical Specifications

• Body: 3.0" steel with a proprietary coating for improved durability
• Travel: 12.27"
• Rear Lift Height: 0-1"
• Extended Length: 31.15"
• Compressed Length: 18.88"
• Reservoir: New finned remote reservoir with Recirculating Reservoir Bridge
• Components: Hard-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" 17-4 H900 hard chrome-plated stainless steel
• Piston: High-flow, hard-anodized 6061-T6 billet aluminum race piston
• Valving: Vehicle-specific tuning to maximize performance and comfort for the Gen 2 Ford Raptor
• Top Mount: Eyelet
• Bottom Mount: Eyelet
