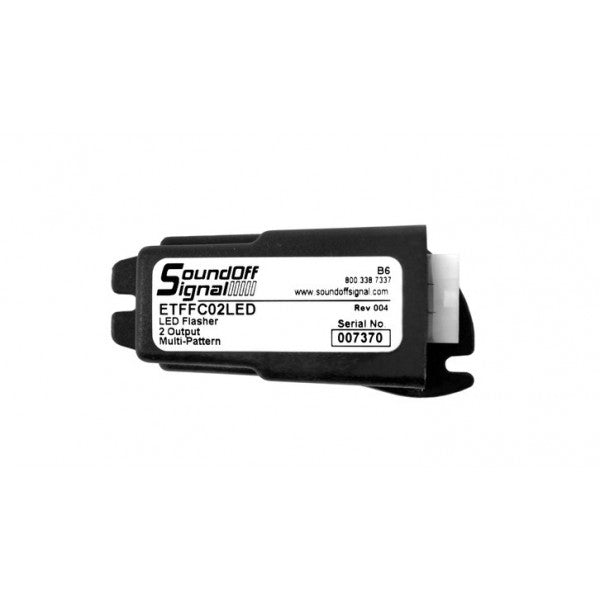

LED Light Flasher, 8 Multi Flashing Patterns

ELECTRICAL SPECIFICATIONS \n- Input Voltage Range +8 Vdc to +30 Vdc \n- Output Drive Current 3 Amps per Output \n- Operating Temperature -40 C to +85 C \n- Flash Patterns Inter-Cycle, Warp, Double, Quad, Quint, E-Pattern, Q Switch, Power Pulse, ETM \n- Output Drive Method High-side switched \n- Pattern Control Method Wire Matrix (5 wires, 2 head-control, 3-pattern control) \n- Standby Current <5mA @ 12.8 Vdc \n- Reverse Polarity Protection: Yes (with inline fuse) \n- Short Circuit Protection: Yes \n- Thermal Protection: Yes \n \nDO NOT connect more than a 3 amp load to the output. Doing so will shut the unit down to prevent damage to the Flasher.
